About This

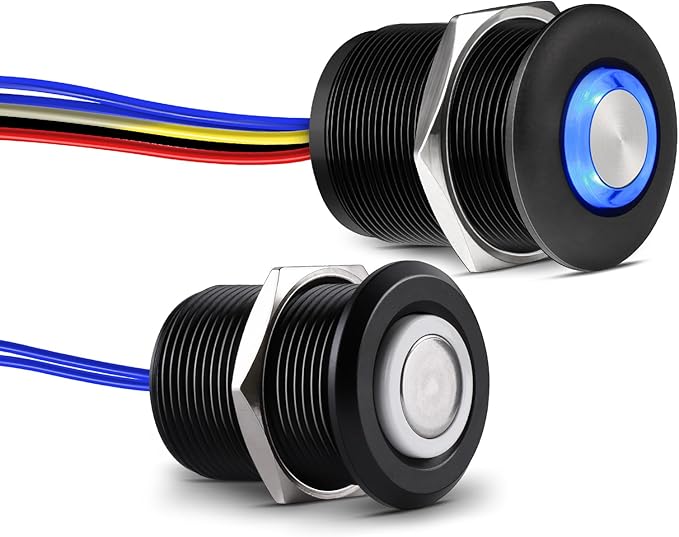

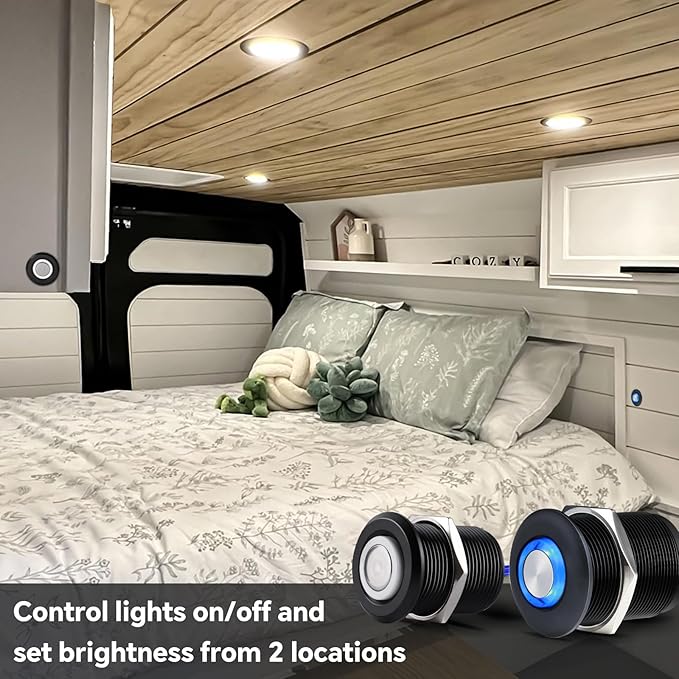

• Multi-positions Dimming Control: Easily create multi-positions on/off and dimming control for RV, boat, truck, van interior lighting. All button support on/off and dimming control and brightness memory function. Master dimmer with backlight, slave without

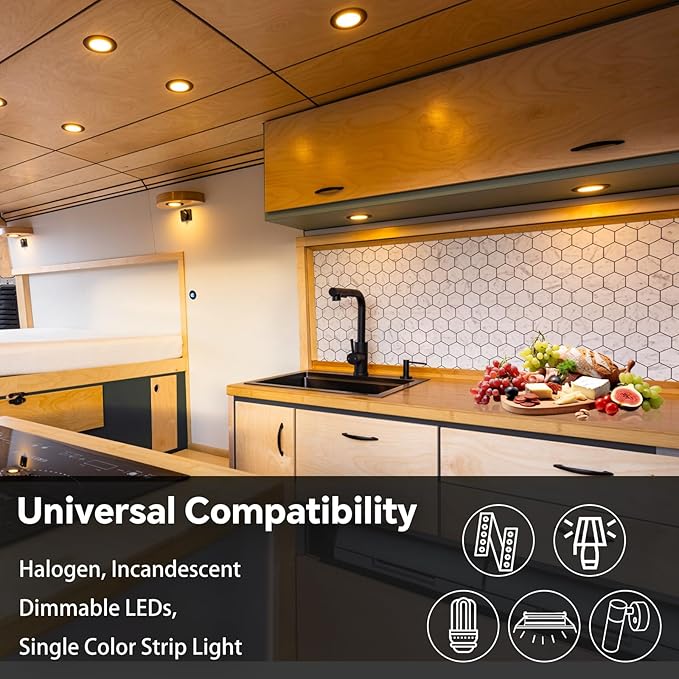

• DC12V High-side PWM Dimming: Dims up to 72 watts of LED lighting (Rated 6A@12VDC, 3A@24VDC), features no hum no buzz flicker-free 5%-100% PWM stepless dimming control. Works with halogen, incandescent, LED strip light and non-regulated LED light fixtures

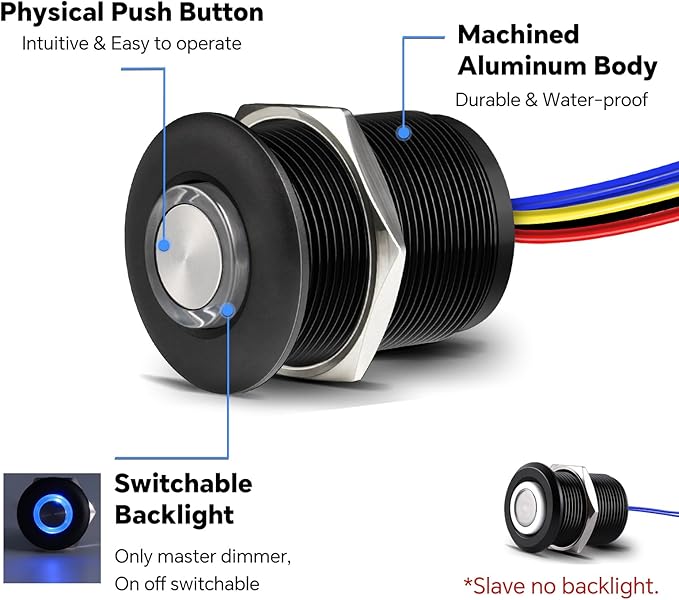

• All-aluminum & High Performance: The dimmer enclosure was manufactured from CNC milled aluminum with excellent heat dissipation and anti-corrosion, inbuilt over-current over-voltage and electrical surge protection, keep high performance and long-lasting

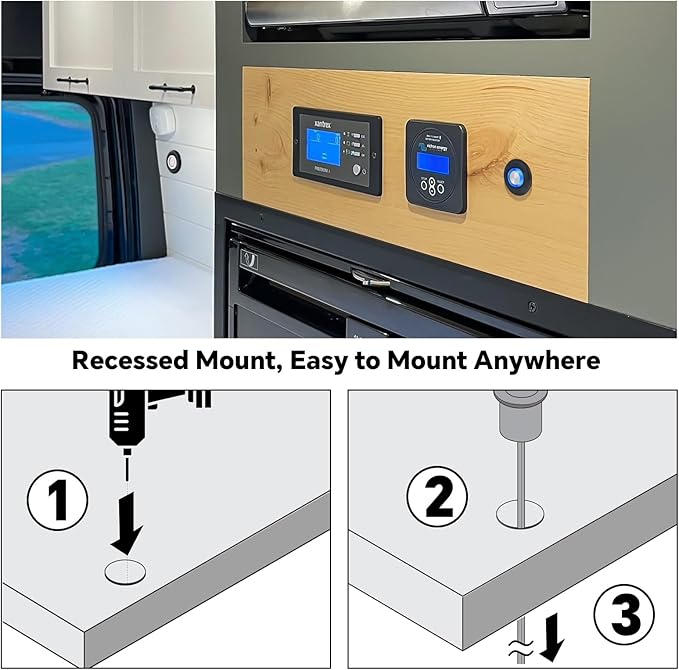

• Recessed Mount, Sleek Clean Look: Drill a mounting hole (Master dimmer 7/8” hole, slave dimmer 3/4” hole) on custom switch panel, OEM dashboard or cabinet for recessed mounting, dimmer secured by screw nut, providing modern clean look after installation
• Compact Design and Versatile: Compact size easily fits in small spaces where other dimmers can’t. Perfect for RVs travel trailers boats camper van motorhome trucks, 12 volt residential or commercial lighting or anywhere 12-24VDC power is present

Overview

• Operation Mode : ON-ON-OFF
• Current Rating : 6 Amps
• Operating Voltage : 12 Volts (DC)
• Contact Type : Normally Open
• Connector Type : Crimp
• Brand : acegoo
• Switch Type : Push Button
• Terminal : Screw
• Material : Aluminum

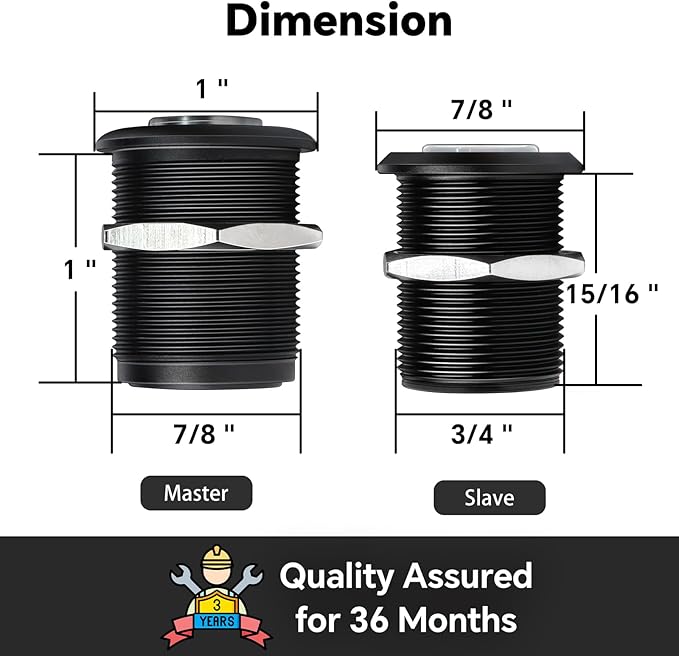

• Item dimensions L x W x H : 1.5 x 1 x 0.8 inches
